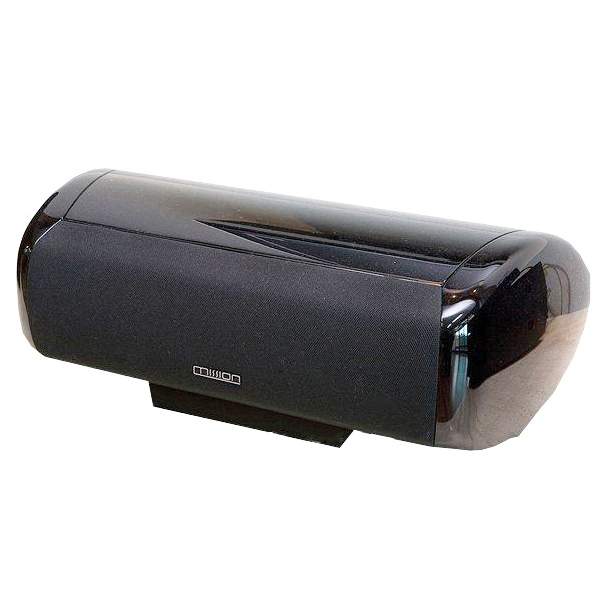

Mission E8C Center Speaker
constructionEnclosure Grania multi-layer MDF and particle board sandwichGrille Acoustically transparent clothDamping Acufil fibreelectricalL.F. Unit Twin 110mm Paramid-SH.F. Unit 25mm Viotex-S soft dome with FF and heatsink coolingCrossover Acoustic 2nd orderTerminals Gold plated Bi-wire Multi-way binding postsspecificationsEnclosure Type 2-way sealed boxIn-room Frequency Bandwidth -6 dB at 70 Hz and 36 kHzFrequency Response ±3dB 80 Hz — 30 kHzNominal Impedance 8 Ohms compatible (min. 4.6Ω)Sensitivity SPL/m/2.83 V 90 dBRecommended Amplifier Power 50 — 150 WCrossover Frequency 2.2 kHzEffective Volume 6.5 litresCabinet Dimensions (H x W x D) 172 x 443 x 250 mm (6.8 x 17.4 x 9.8 inches)Weight 9.1 kg (20.1 lbs)Finish Hand finished piano-lacquer Anthracitesetting up• RUN IN for at least 24 hours before serious listening.• Use supplied stand or wall bracket for optimum performance.• Position within 3cm — 40cm of rear wall.• Use good quality speaker cables.
